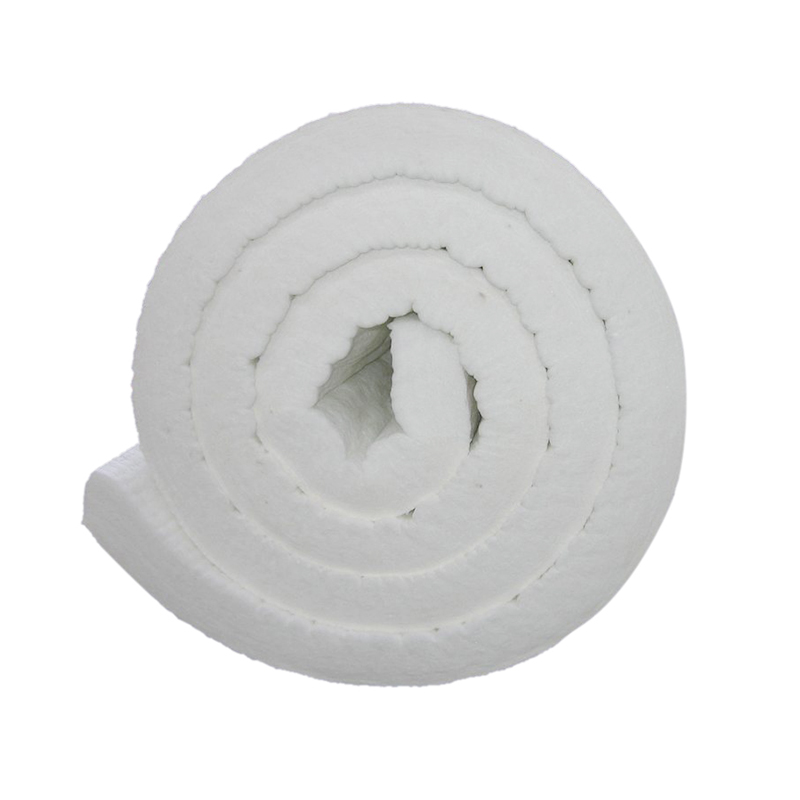

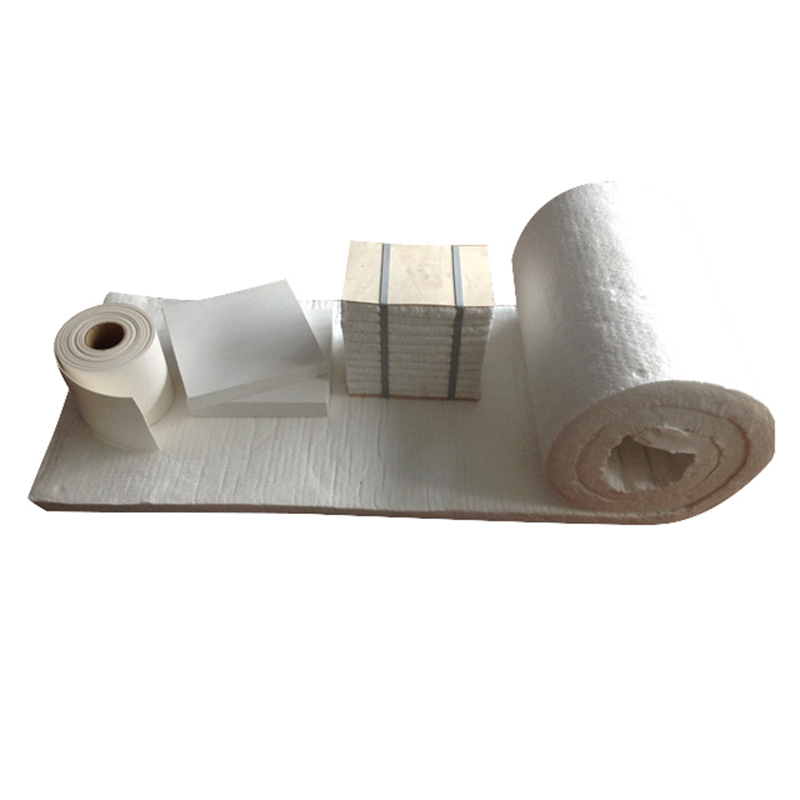

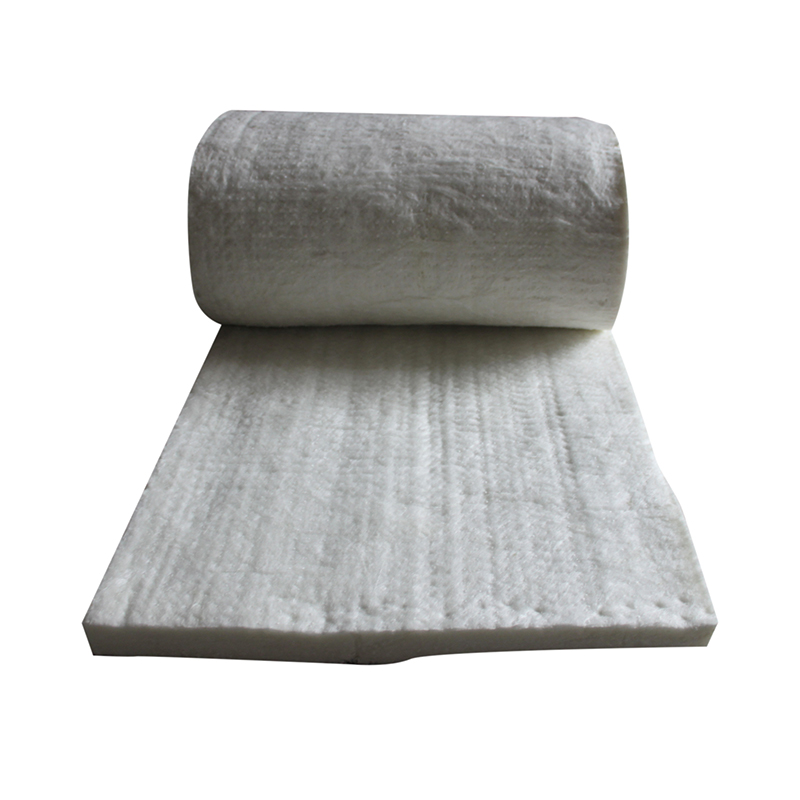

Ceramic Fiber Blanket is an ideal heat proof thermal insulation, fire-proof and sound-absorbing material. The Ceramic Fiber Blanket is composed of long, flexible, interwoven fibers manufactured by the blown and the spun process yielding a strong, light weight, durable blanket for applications in a temperature range from 1100° C (2012° F ) to 1430° C (2600° F). The ceramic fiber blanket is completely inorganic and is needed to provide exceptional handling strength, used in a variety of heat processing applications
Standard Dimension of Ceramic Fiber Heat Proof Insulation Blanket:
Density: 96.128Kg/m3.
Length: 3600. 7200mm.
Width: 610mm.
Thickness: 10.20.30.40.50mm.
Product Application of Ceramic Fiber Heat Proof Insulation Blanket:
Ceramic Fiber Blanket is widely used for industrial furnace heat treatment, direct exposure to heat as furnace hot face lining, high temperature filter material, heat treatment insulation, and expansion joints.
Advantages of Ceramic Fiber Heat Proof Insulation Blanket:
Description | COM | STD | HP | HA | HZ | |
Classification Temperature (ºC) | 1100(2012℉) | 1260(2300℉) | 1260(2300℉) | 1360(2480℉) | 1430(2606℉) | |
Working Temperature (ºC) | <1000 (1832℉) | 1050(1922℉) | 1100(2012℉) | 1200(2192℉) | 1350(2462℉) | |
Color | white | white | white | white | white | |
Density (kg/m3) | 260~ 320 | 260~ 320 | 260~ 320 | 260~ 320 | 260~ 320 | |
Liner Shrinkage | <2.5 | <2.5 | <2.5 | <2.5 | <2.5 | |
(%) After 24hours | (1000℃/ 1832℉) | (1050ºC/1922℉) | (1100ºC/2012℉) | (1100ºC/2012℉) | (1350ºC/246℉) | |
Thermal Conductivity (w/m.k)Density (128Kg/m3) | 0.085 (400ºC/752F) | 0.085 (400ºC/752F) | 0.085 (400ºC/752F) | 0.085 (400ºC/752F) | 0.085 (400ºC/752F) | |
0.180 (1000ºC/1832F) | 0.180 (1000ºC/1832F) | 0.180 (1000ºC/1832F) | 0.180 (1000ºC/1832F) | 0.180 (1000ºC/1832F) | ||
Tensile Strength (MPa) (Strength 10%) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
Chemical Composition % | Al2O3 | 44 | 46 | 47-49 | 52-55 | 39-40 |
Al2O3+SiO2 | 96 | 97 | 99 | 99 | - | |
Al2O3+ SiO2+ZrO2 | - | - | - | - | 99 | |
ZrO2 | - | - | - | - | 15-17 | |
Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | |
Na2O +K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | |
