Highest Service Temperature (℃)

1050

650

Melting   Point(℃)

1760

1760

Density(kg/m3)

350-600

350-600

Heat Conductivity(W/m·k, ASTMC201)

(average 800℃)

0.17

0.17

Ignition Loss(%)

10-20

10-20

                Chemical Component

Al2O3

46.6

46.6

Al2O3+SiO2

99.4

99.4

Product Standard Specification

Fiber Cloth

Width: 1000-1500mm, thickness: 2, 2.5, 3,   5, 6mm

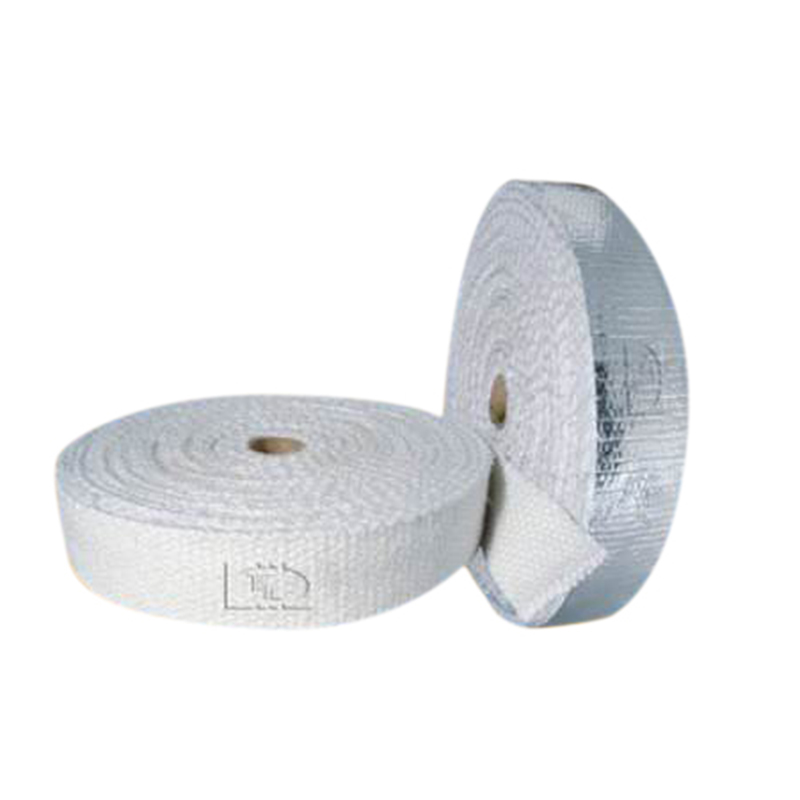

Fiber Tape

Width: 10-150mm, thickness: 2, 2.5, 3, 5,   6, 8, 10mm

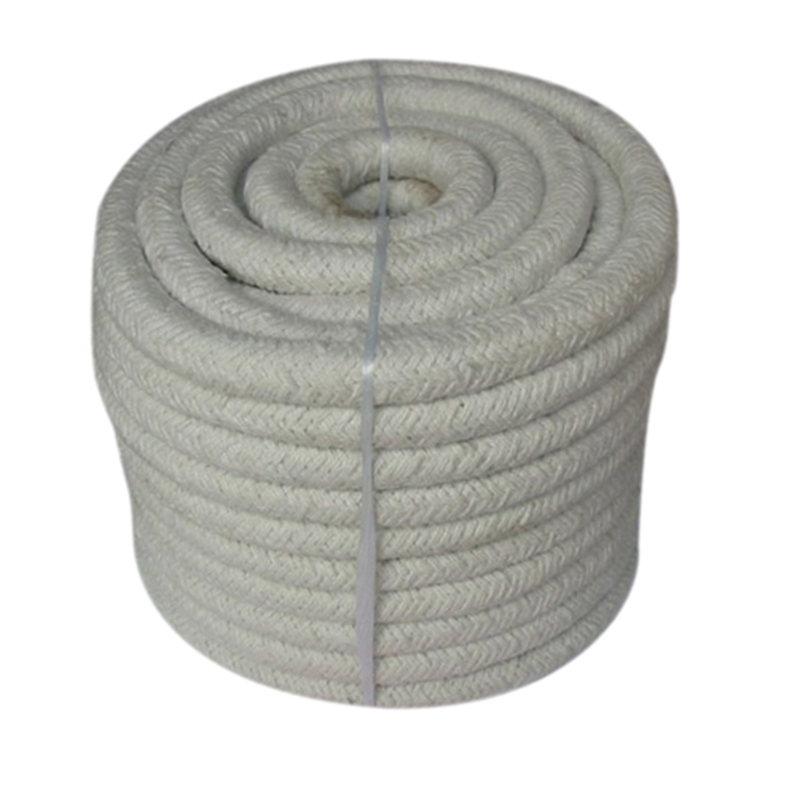

Fiber Twisted Rope

 Diameter: 5, 8, 10, 12, 15, 18, 20, 25, 30,   35, 40mm

Fiber Round Strand Rope

Diameter: 5, 6, 8, 10, 12, 14, 15, 16,   18, 20, 25, 30, 35, 40, 45, 50mm

Fiber Square Rope

5*5, 8*8, 10*10, 12*12, 14*14, 15*15,   16*16, 18*18, 20*20, 25*25, 30*30, 35*35, 40*40, 45*45, 50*50mm

Module Size (mm/module)

300*300*150, 200, 250, 300

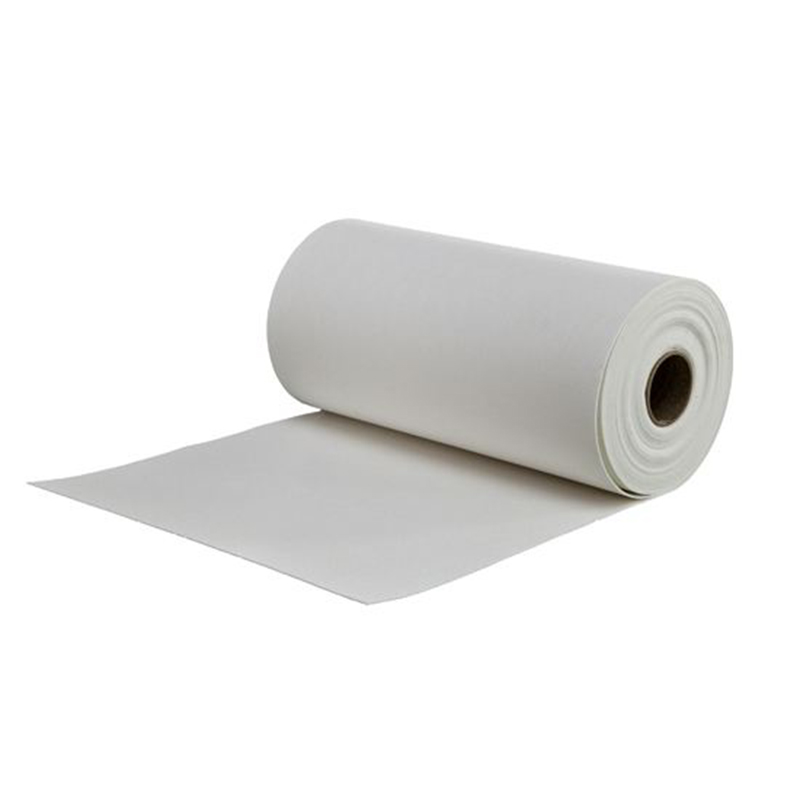

Fiber Paper Size

Length: 10/20/30/40m; Width: 600/1200mm;

Thickness: 0.5/1/2/3/4/5/6mm
